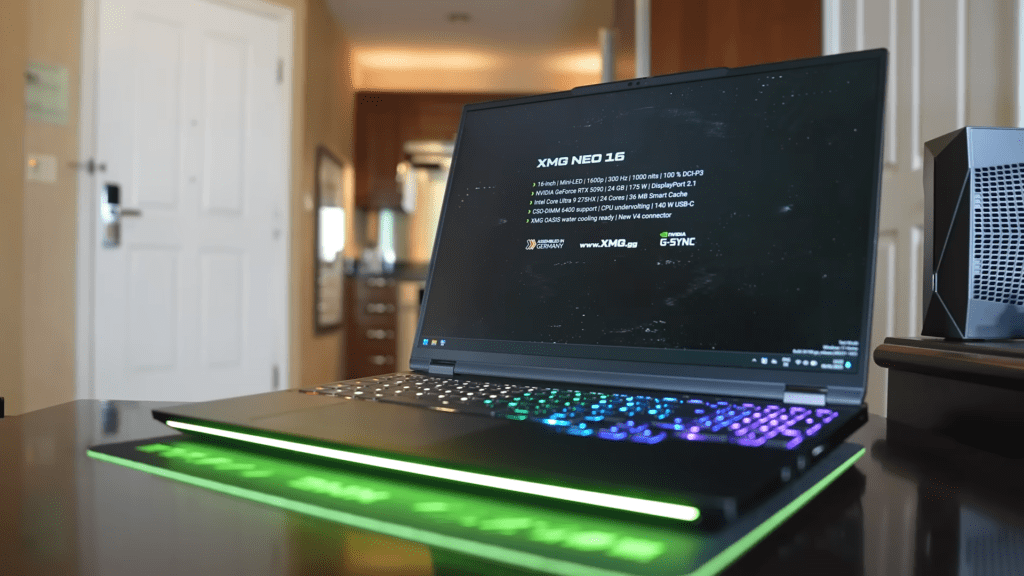

The XMG Neo 16 is setting a new standard in gaming laptops with its innovative modular design. Unlike traditional laptops where the CPU and GPU are soldered onto a single motherboard, the Neo 16 features separate CPU and GPU boards that connect via 8 lanes of PCIe Gen 5. This design brings several advantages, including improved customization, better repairability, and enhanced cooling. Let’s dive into the key features and improvements that make the 2025 XMG Neo 16 an exciting release for gamers and power users alike.
1. Modular CPU and GPU Design
The most notable change in the Neo 16 is its modular architecture. Instead of a single motherboard with integrated CPU and GPU, XMG has introduced a system where the CPU and RAM sit on one board, while the GPU resides on another. These boards connect using PCIe Gen 5, allowing for different CPU and GPU configurations.
Benefits of the Modular Design:
- Easier Repairs: If the GPU fails, XMG can replace the GPU board instead of the entire motherboard.
- More Customization: Customers can choose between Intel and AMD processors and various GPU options.
- Efficient Stock Management: XMG can quickly assemble custom orders without maintaining a large inventory of pre-built configurations.
2. Upgradeability and Compatibility
While the modular design is a major step forward, XMG does not officially support future upgrades for CPUs or GPUs. This is due to the unpredictability of compatibility with upcoming hardware from AMD, NVIDIA, and Intel. Unlike the Alienware Area 51m, which promised an upgrade path that never materialized, XMG is being transparent about the limitations.
3. Wide Range of Customization Options
At launch, the XMG Neo 16 will be available with the following configurations:
- Intel Version: Core Ultra 9 275HX processor
- GPU Options: NVIDIA RTX 5070 Ti, 5080, or 5090
- Memory: Up to 96GB DDR5-6400 (CSO-DIMM support)
- Storage: Primary M.2 slot supporting PCIe Gen 5 speeds
- AMD Version (Upcoming): Featuring AMD’s top-end Fire Range processors, including the 9955HX3D with 3D V-Cache
Unlike some competitors, XMG does not restrict AMD processors to lower-tier graphics, ensuring top-tier performance across configurations.
4. Improved Cooling System
Effective cooling is critical for high-performance gaming laptops, and XMG has enhanced its cooling solutions for the Neo 16:
- Honeywell PTM7958 Thermal Compound: Instead of liquid metal, this compound balances performance and usability, making CPU/GPU replacements easier.
- Larger Heatsinks and Fans: The removal of side exhaust vents makes room for larger fans and higher air pressure.
- Three-Fan System: A new third fan pulls in cool air from the bottom panel, directing it over the RAM and CPU heat pipes.
- Liquid Cooling Support: The Oasis liquid cooling system now features a locking mechanism instead of magnets, improving stability.
5. Display Enhancements
A premium Mini LED display is now available, addressing one of the key missing features from the previous Neo 16 models.
Screen Options:
- Mini LED Panel: 2560×1600 resolution, 300Hz refresh rate, and up to 1000 nits brightness
- Standard Panel: 2560×1600 resolution, 300Hz refresh rate (upgraded from 240Hz in previous models), 500 nits brightness
6. Design and Build Quality Improvements
Despite all the upgrades, the Neo 16 is only slightly larger than last year’s model (+7mm depth, +1mm thickness), and the build quality has improved significantly.
- More Sturdy Hinges: The display fits more tightly, reducing screen wobble.
- Larger RGB Light Bar: Because more RGB = more FPS!
7. Updated Ports and Connectivity
XMG has refined the port layout, adding support for faster connectivity and new features:
Left Side:
- 2.5Gb Ethernet Port (moved from the back)
- USB Type-C 3.2 Gen 2
- USB Type-A and 3.5mm Audio Jack
Right Side:
- SD Card Slot (now supporting SD Express for up to 900MB/s speeds)
- Two USB Type-A Ports
Rear Side:
- USB Type-C (Thunderbolt 4 for Intel, USB 3.2 Gen 2 for AMD)
- Power Input and HDMI 2.1
- New Mini DisplayPort 2.1 (Connected to NVIDIA GPU)
- Liquid Cooling Port with Locking Mechanism
8. Power and Battery Upgrades
- 420W Charger for RTX 5080 and 5090 Models: More power-efficient thanks to silicon carbide technology.
- Battery Efficiency: Improvements in cooling and power delivery ensure better thermal management and battery longevity.
Conclusion: Is the XMG Neo 16 Worth It?
The 2025 XMG Neo 16 redefines gaming laptops with its modular CPU and GPU boards, allowing for greater customization and easier repairs. While it does not promise future upgradeability, the flexibility in configuration options makes it a strong contender in the high-performance laptop market. Combined with improved cooling, premium display options, and a well-thought-out port selection, the Neo 16 is a powerhouse that caters to both gamers and professional users.
If you’re looking for a highly customizable, repairable, and powerful gaming laptop, the XMG Neo 16 is worth considering.
